BroodMinder-SubHub

$109.99

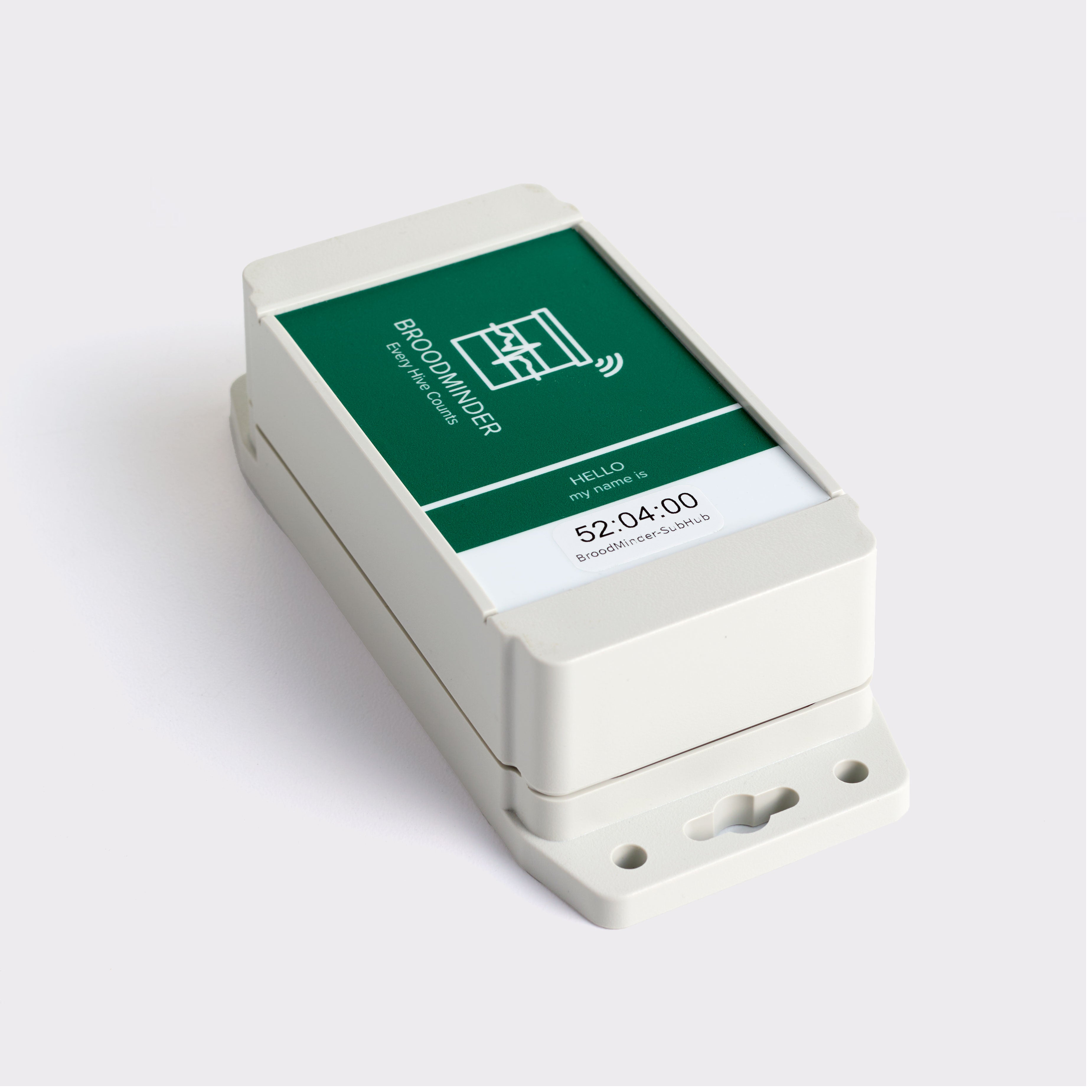

The BroodMinder-SubHub is a Bluetooth range extender and a high speed data vault in a box about the size of a TV remote. It makes managing and reading many BroodMinder devices easy.

The BroodMinder-SubHub wakes up every 10 minutes and stores data from all of your BroodMinder devices that it finds. This means that when you go to read your data with your phone, you only read the -SubHub instead of all of the individual sensors. And it features a turbo-transfer protocol which will transfer a month's worth of data from 50 devices in 2 minutes. It's a great time saver.

The BroodMinder-SubHub will also re-transmit the real-time data over 1,000 feet (330 meters) away. This allows you to take an old cell phone (with Bluetooth) and run our Apiary app in Hub Mode. This is our least expensive way to see real time data. Please note that Hub Mode in the Apiary app is a premium feature and requires a $54/yr subscription for real-time data.

note: BroodMinder-WIFI does not listen to -SubHub due to high power requirements.

More information is here, in our users guide, and in this video.

Included
  • 1x SubHub
  • 4x replaceable AA lithium batteries
  • free web and mobile app access

Optional (charged on top):

  • weather shield
Features
  • BroodMinder-SubHub wakes up every 10 minutes and stores data from all of your BroodMinder devices that it finds. This means that when you go to read your data with your smartphone, you only read the -SubHub instead of all of the individual sensors.
  • It features a turbo-transfer protocol which will transfer a month's worth of data from 50 devices in 2 minutes. It's a great time saver.
  • The BroodMinder-SubHub will also re-transmit the real-time data over 330 meters (1,000 feet) away.

  • There are 3 different setups available:

    1. stand alone and sync with your phone
    2. range extender in combination with and old cell phone running Apiary App in Hub-Mode
    3. range extender in combination with a BroodMinder-Cell

Notes :

Specifications

Direct Measures: Ambient temperature

Size and weight: 12,5 x 4,5 x 2,3 cm / 127g

Envelope: non-watertight plastic box
Battery: 4 replaceable AA Lithium batteries
Battery life: 1 year
Sends data: every hour
Internal memory storage: stores readings in case of network default, sending them when service is recovered.
Transmission: Bluetooth Low Energy
Reception range: +30 meters for scales and 10m for internal devices
Transmission range: up to 330 meters with a Broodminder-Cell or your smartphone
Firmware updates: BroodMinder Bees app
Certifications: CE
Plans

Available with Free and Premium memberships.

Membership is not required except for Hub-mode application. See Features and Installation sections for more details.

You can purchase membership and tokens at https://mybroodminder.com/app/premium-subscription .
Installation

BroodMinder-SubHub installs in the middle of the apiary, close to the monitored hives and in particular to internal monitors (T2, TH) since they have the most short in range. Mount it on a pod or against a wall and even on top of one hive. Ideally you should leave it 1.5m above the ground. Do not place it on the ground where any radio signal will drastically drop.

Note that the SubHub box is not water tight. If you want to protect it from water, you should consider a weather shield that will hold it nicely.

Remember that there are different setups available:

  1. stand alone and sync with your phone,
  2. range extender in combination with and old cell phone running Apiary App in Hub-Mode
  3. range extender in combination with a BroodMinder-Cell

To learn more read our User guide and watch the installation Video guide

Feel free to contact us at Support@BroodMinder.com if you need assistance configuring your apiary.
